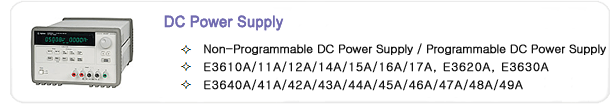

Non-Programmable DC Power Supply



E3610A

E3611A

E3612A

E3614A

E3615A

E3615A

E3617A

E3620A

E3630A

Feature

Dual range, 10 turn pots, Constant Voltage(DV), Constant Current(CC) modes

Adjustable overvoltage protection, voltage & resistance programming, remote sense, rear outputs, ten turn pots, CV, CC modes. Multiple supplies can be connected for tracking or higher power.

Isolated dual outputs, 10 turn pots CV, CL

Tracking, CV, CL (±20 V) CV, CF (+6 V)

Number of output

1

2

3

Number of Output Range

2

2

2

1

1

1

1

1

1

DC Output Rating

8V, 3A
15V, 2A

20V, 1.5A
35V, 0.85A

60V, 0.5A
120V, 0.25A

8V, 6A

20V, 3A

35V,1.7A

60V, 1A

25V, 1A
25V, 1A

+6V, 2.5A
+20V, 0.5A
-20V, 0.5A

Load and Line Regulation

< 0.01% + 2mV

Ripple and Noise (20Hz to 20MHz)
Normal mode voltage

< 200¥ìVrms, < 2mVpp

< 200¥ìVrms, < 1mVpp

< 350¥ìVrms, < 1.5mVpp

Normal mode current

< 200¥ìArms, < 1mVpp

< 0.02% + 3mA

< 0.02% + 1.5mA

< 0.02% + 1mA

< 0.02% + 0.5mA

Common mode current

Not specifi ed

< 1¥ìArms

Transient Response Time

< 50¥ìsec following a change in output current from full load to half load for output to recover within:

10mV

15mV

Meter Accuracy

±0.5% + 2counts at 25ºC ±5ºC

Meter Resolution

   Voltage

10mV

100mV

100mV

10mV

10mV (0%20V), 100mV (>20V)

10mV

   Current

10mA

10mA

1mA

10mA

10mA

1mA

1mA

1mA

10mA

Isolation

240 Vdc



Programmable DC Power Supply



E3640A

E3641A

E3642A

E3643A

E3644A

E3645A

Max. Power

30W

50W

80W

Output

1

1

1

1

1

1

DC Output Rating
(@ 0 ºC to 40 ºC)

0 to 8 V/3 A or 0 to 20 V/1.5 A

0 to 35 V/0.8 A or 0 to 60 V/0.5 A

0 to 8 V/5 A or 0 to 20 V/2.5 A

0 to 35 V/1.4 A or 0 to 60 V/0.8 A

0 to 8 V/8 A or 0 to 20 V/4 A

0 to 35 V/2.2 A or 0 to 60 V/1.3 A



E3646A

E3647A

E3648A

E3649A

Max. Power

60W

100W

Output

2

2

2

2

DC Output Rating
(@ 0 ºC to 40 ºC)

Two
0 to 8 V/3 A or
0 to 20 V/1.5 A

Two
0 to 35 V/0.8 A or
0 to 60 V/0.5 A

Two
0 to 8 V/5 A or
0 to 20 V/2.5 A

Two
0 to 35 V/1.4 A or
0 to 60 V/0.8 A


Load and Line Regulation ± (% of output + offset)

Voltage

< 0.01% + 3 mV

Current

< 0.01% + 250 ¥ìA

Ripple and Noise (20 Hz to 20 MHz)

Normal Mode Voltage

< 5 mVpp/0.5 mVrms for 8 V/20 V models
< 8 mVpp/1 mVrms for 35 V/60 V models

Normal Mode Current

< 4 mArms

Common Mode Current

< 1.5 ¥ìArms

Accuracy1 12 Months (@ 25 ºC ± 5 ºC), ± (% output + offset)

Programming



Voltage

< 0.05% + 10 mV (< 0.1% + 25 mV for output 2 of E3646/47/48/49 A)

Current

< 0.2% + 10 mA

Readback



Voltage

< 0.05% + 5 mV (< 0.1% + 25 mV for output 2 of E3646/47/48/49 A)

Current

< 0.15% + 5 mA (< 0.15% + 10 mA for output 2 of E3646/47/48/49 A)

Resolution



Program

< 5 mV/1 mA

Readback

< 2 mV/1 mA

Meter

10 mV/1 mA

Transient Response

Less than 50 ¥ìsec for output to recover to within 15 mV following a change in output current from full load to half load or vice versa.

Settling Time

< 90 msec

OVP
Accuracy, ± (% output + offset)
Activation Time

< 0.5% + 0.5 V
< 1.5 msec, OVP ¡Ã 3 V/< 10 msec, OVP < 3 V

Temperature Coeffi cient per ºC ± (% output + offset)

Voltage

< 0.01% + 3 mV (< 0.02% + 5 mV for output 2 of E3646/47/48/49A)

Current

< 0.02% + 3 mA
