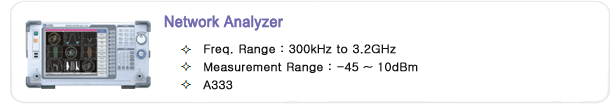

main > (½ÅÇ°°èÃø±â) Protek > Network Analyzer







Item

A333

OS

Operating System

Window XP
(XP ȯ°æ°ú µ¿ÀÏÇÏ°Ô ÀÚÀ¯·Î¿î »ç¿ë °¡´É)

Frequency

Range

0.3MHz ~ 3.2GHz

Resolution

1mHz

Accuracy

±5ppm

Amplitude

Range

-45dBm ~ + 10dBm

Resolution

0.05dB

Accuracy

1.0dB

Harmonic distortion

-30dBc

Demage level

+26dBm

Demage DC Voltage

35V

Noise level(crosstalk)

300kHz ~ 3MHz

-117dBm

3MHz ~ 2.7GHz

-122dBm

2.7GHz ~ 3.2GHz

-117dBm

Dynamic Range

300kHz ~ 3.2GHz (IF BW : 10Hz)

£¾125dB (Typical 130dB)

Interface/
Storaged

USB

2

Mouse/Key Board

2

GPIB

Option

Floppy Disk

X

RS232

X

LAN

1

Etc

Port Impedance

50ohm/75ohm

LCD

10.4 inch

Touch Screen

Basic

Sweep time

25ms
